Selecting the correct Collet Tool is a critical decision in industrial machining, manufacturing, and precision engineering. Whether used in CNC machines, lathes, milling equipment, or drilling systems, a Collet tool directly influences accuracy, repeatability, and overall production efficiency. With a wide range of sizes, materials, and standards available, understanding the fundamentals can help businesses and machinists make informed choices that improve performance and reduce operational issues.

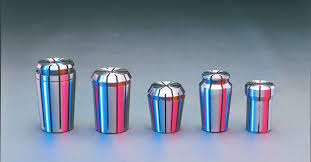

What Is a Collet Tool?
A Collet Tool is a precision holding device designed to secure cutting tools or workpieces in machining equipment. It functions by tightening around an object to hold it firmly in place while minimizing vibration and runout. Collets are widely used because they provide strong gripping force while maintaining high concentricity, which is essential for precision operations.
Unlike traditional chucks, collets distribute pressure evenly, resulting in improved stability and smoother finishes. This makes them especially suitable for high-speed machining and delicate tasks that require exact tolerances.
Why Choosing the Right Collet Tool Matters
In industrial environments, even minor inaccuracies can lead to product defects, wasted material, or machine downtime. The right collet tool helps ensure:
- Higher precision and consistency
- Reduced tool wear and breakage
- Improved surface finish quality
- Enhanced machine efficiency
- Lower long-term maintenance costs
An ill-fitting or low-quality collet can introduce vibration, misalignment, and slippage, ultimately affecting both productivity and safety.
Key Factors to Consider When Selecting a Collet Tool
1. Machine Compatibility
The first and most important consideration is compatibility with your machine spindle. Collets are manufactured according to specific standards such as ER, R8, 5C, and others. Always verify the spindle type and manufacturer specifications before making a purchase.
2. Size and Clamping Range
Collets are designed to hold tools or materials within a defined diameter range. Selecting the correct size ensures secure clamping without over-tightening or deformation. Using the wrong size can reduce gripping force and accuracy.
3. Material and Build Quality
Industrial collets are typically made from hardened alloy steel or spring steel. High-quality materials offer better durability, resistance to wear, and improved elasticity, which is necessary for repeated tightening and loosening cycles.
4. Precision and Tolerance Levels
Tolerance ratings indicate how accurately a collet can hold a tool. For high-precision industries such as aerospace or medical manufacturing, tighter tolerances are essential. General machining may allow for slightly broader tolerance ranges.
5. Application Type
Different machining operations require different characteristics. For example:
- High-speed CNC work benefits from balanced collets.
- Heavy milling requires stronger gripping force.
- Fine engraving or drilling demands ultra-low runout.
Understanding the nature of your work will guide the correct choice.
6. Maintenance and Longevity
A well-designed collet tool should be easy to clean and maintain. Accumulated debris or metal chips can reduce performance over time, so selecting a model that allows quick inspection and cleaning is advantageous.
Common Types of Collet Tools
ER Collets
ER collets are among the most widely used due to their versatility and wide clamping range. They are suitable for CNC machining, milling, and drilling operations across many industries.
5C Collets
Common in lathes and precision turning applications, 5C collets are valued for their accuracy and quick change capability. They are often used in production environments where speed and repeatability are crucial.
R8 Collets
Typically used in manual milling machines, R8 collets are simple, reliable, and effective for light to medium-duty tasks.
Specialty Collets
These include square, hex, and custom collets designed for unique workpiece shapes or specialized machining needs.
Best Practices for Using a Collet Tool
Even the highest-quality collet will underperform if not used correctly. Consider these best practices:
- Clean before installation: Remove dust, oil, and metal particles.
- Avoid over-tightening: Excessive force can damage both the collet and the tool.
- Inspect regularly: Look for cracks, wear, or deformation.
- Store properly: Keep collets in organized cases to prevent physical damage.
- Replace when worn: A worn collet can compromise precision and safety.
Signs It’s Time to Replace Your Collet Tool
Industrial tools experience wear over time. Replacing a collet at the right moment prevents larger mechanical issues. Watch for:
- Visible cracks or chips
- Reduced gripping strength
- Increased vibration or noise
- Poor surface finishes
- Tool slippage during operation
Proactive replacement helps maintain production quality and machine integrity.
Find the right Collet Tool for precision machining with Centaur Precision Tools, Inc—quality solutions for reliable industrial performance.
Frequently Asked Questions (FAQs)
1. How often should a collet tool be replaced?
Replacement depends on usage frequency and workload. High-volume operations may require more frequent changes, while moderate use may allow longer lifespans with proper maintenance.
2. Can one collet fit multiple tool sizes?
Some collets, such as ER types, offer a limited clamping range. However, it is still important to stay within the manufacturer’s specified limits for optimal performance.
3. What causes runout in a collet system?
Runout can result from dirt, improper tightening, worn collets, or spindle misalignment. Regular cleaning and inspection reduce this risk.
4. Are expensive collets always better?
Not necessarily. Quality and suitability for the application matter more than price alone. A well-matched mid-range collet can outperform a costly but incompatible one.
5. Can damaged collets be repaired?
In most cases, replacement is safer and more cost-effective than repair, especially in precision environments.
